  A C Recyler AR2788S AR2788S
  REFRIGERANT RECOVERY  RECYCLING  RECHARGING MACHINE
  The heart of the AR2788S is the proprietary patent pending plumbing arrangement which eliminates the use of solenoid and check valves in the
recovery and evacuation flow paths. Both these components are highly susceptible to in-field failure when exposed to foreign contaminants such
as aftermarket A/C Sealants. The flow control technology and 6 CFM PRO-SET® vacuum pump allows you to evacuate systems up to 50% faster.
Intelligent self diagnostic capabilities and quality USA manufacturing all contribute to create a solid unit you can rely on to run smoothly in those
busy summer months. Fully compliant with SAE J2788 standard and SAE J2788H standard for High Voltage A/C systems.

Fully compliant with SAE J2788 standard and SAE J2788H standard for High Voltage A/C systems.












  EASY USER SET-UP & OPERATION
No assembly required! Simply remove the packaging material and add refrigerant. Easy-to-follow instructional booklet included Multi language selectable in English, Spanish, French, German, Russian, Japanese and Chinese.

ROCK SOLID CONSTRUCTION

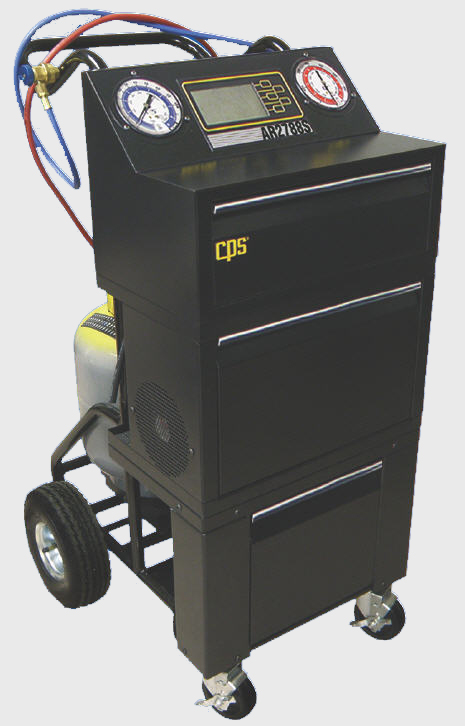

The AR2788S emulates the appearance of a professional grade mechanics tool box with all steel construction,
black enameled finish and chrome trimming. Two integrated drawers provide convenient storage of a/c service tools and replacement filters Mobility around the shop floor is a breeze with heavy duty front casters and large rubber/tube tires in the rear.

PROFIT FROM SPEED
A critical component of the SAE J2788 standard states that a certified unit must be able to recover 95% of a 2007 Chevy Suburban’s 3lb refrigerant charge (dual a/c) within 30 minutes. The AR2788S MACH 7 accomplished this task in less than 20 minutes! Earn greater return on your investment with SPEED Patent pending flow control technology enables faster
and more accurate recovery, recycling and recharging.

NO SOLENOIDS or CHECK VALVES
• Exclusive patent pending plumbing arrangement eliminates the use of all solenoid and check valves in the recovery and evacuation flow paths. Both these components are susceptible to failure when exposed to foreign contaminants such as aftermarket A/C sealants.

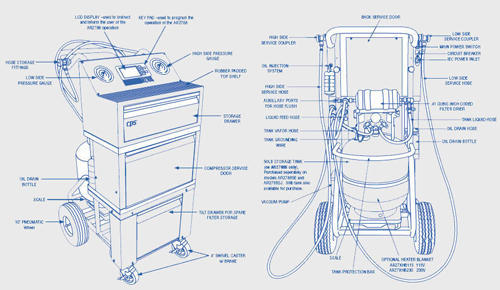

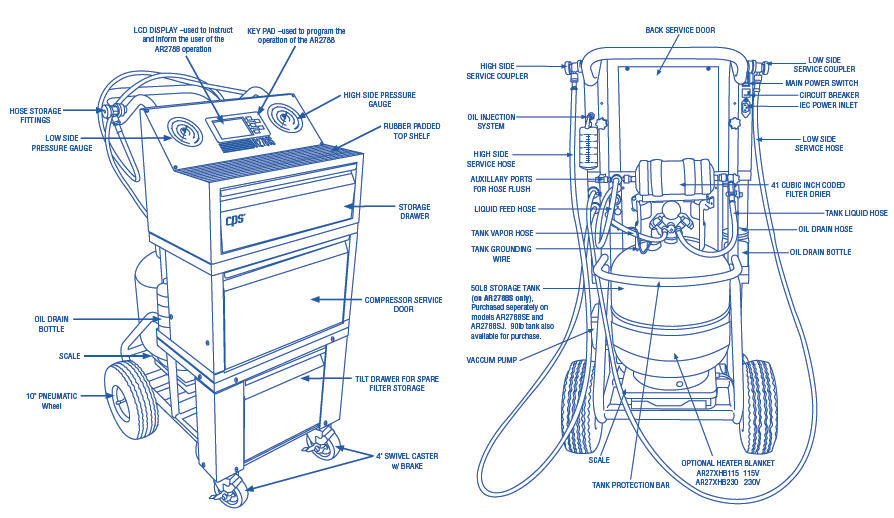

  AR2788S Unit Layout & Features
















AR2788S Specifications

Models

AR2788S

AR2788SJ

AR2788SE

Compressor Type

1/3 HP reciprocating compressor

Dimensions

22" W x 24.5" D x 42" H

Weight

120 lbs (does not include tank weight)

Operating Range

10˚C (50˚ F) to 49˚C (120˚)

Power Source

115 VAC 60Hz 1Ph

100 VAC 50 / 60Hz 1Ph

220-240 VAC 50/60Hz 1Ph

Power Consumption

500 W

Low Side Gauge

-30 inch Hg to 125 PSIG

High Side Gauge

0 to 500 PSIG

Filtration

41 cubic inch drier, .7 micron oil separator

Automatic Control Valves

Motorized ball valves to control HI, LO, recover, and vacuum

Charging Valve

12 VDC Solenoid Valve

Construction

1" Heavy duty tubular frame construction

10" pneumatic wheels, 4" swivel casters

Overload Protection

15A Thermal Breaker

15A Thermal Breaker

10A Thermal Breaker

High Pressure Shut-Off

30 bar (450 psig)
























PDF Flyer
