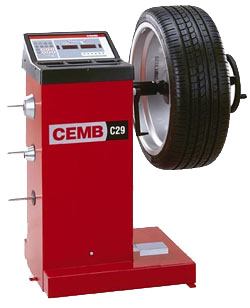

Cemb C29 Mobile Wheel Balancer




  Features and Benefits


CEMB wheel equipment for Gas Stations, small and medium size garages requiring basic computer wheel balancing for cars and light trucks. The C29 mobile wheel balancer comes fully assembled.

  • Microprocessor-Based Hand Spin Balance (without motor)
  • C29 balances steel & light alloy wheels of cars, light trucks, motorcycles & scooters (with optional adaptors)
  • Foot Brake for exact placement of wheel weights
  • Self-Diagnosis and Self-Calibration
  • Menus for quick selection of the following:
    • ounces to grams
    • inches to millimeters
    • unbalanced thresholds 0.1 or 0.25 ounces (1 or 5g)
  • Optimization program for compensation of rim and tire unbalance
  • Standard Quick Nut Mounting
  • "Static" program--plus 4 ALU programs for PAX, light alloy or special shaped rims
  • Manual Data Entry
  • Dual Operator Program
  • One Button Split & Hidden Weight Program
  • Unique size, weight & dual power supply (12VD.C or 110vac) C29 becomes mobile for onsite balancing
  • 4-Compartment Weight Tray

















  C29









Technical Specifications



  • Power Supply 110 VAC/12DC
  • Max. Power absorbed 0.03 Kw
  • Shaft Size 40mm
  • Balancing Speed < 100 rpm
  • Balancing Accuracy < 1g
  • Rim Diameter 10" - 30"
  • Rim Width 1.5" - 20"
  • Maximum Wheel Weight 165 lbs or (75kg)
  • Operating Temperature °F 32-113 (°C 0-45)
  • Average Cycle Time 6-8 seconds
  • Packing Dimensions L58" x W43" x H59"
  • Gross Shipping Weight 211 lbs

Manufacturer reserves the right to make any and all alterations
it may consider suitable without notice.



 Quick Nut Mounting











Power Supply




Stick On Weight Location Program











  Download PDF

  Standard Accessories

  Standard adapter set with three cones, quick lock ring with hand wheel for wheels with a center hole from Ø from 1.6" to 4.33" (43-110mm).





  Rim width gauge for wheel width measurement.





  Wheel Weight Hammer






  Optional Accessories

  2 piece truck cone kit fits holes from 3.82" (97mm) to 7.09" (180mm)





  3 Piece Truck Cone Kit (same as above, but includes, G.G. spacer ring to fit: (Ford F-350, 450, 550)





  8.5 Super Cone (for G.M.C.-6500 series & International using 19.5 rims) Note: must be used w/3 piece cone kit





  RL cup (8.11” or 206 mm) for alloy rims (includes no-mar ring)





    SR-USA adaptor (for lug centric wheels)






    Universal bolt pattern adaptor (for wheels with 3-4-5 holes or without center hole)







    J Cone high Precision cone for 4-wheel drive vehicles






    Mt Cone high precision stepped cone for Porsche – Audi - Volkswagen – Opel – BMW
