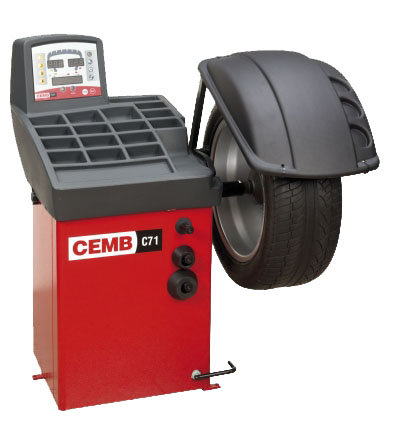

Cemb C71 Digital Wheel Balancer




  Features and Benefits




CEMB wheel automotive equipment for medium to large size garages, car dealers, tire shops or any business wanting to be able balance all aluminum wheels with precision, speed and accuracy. CEMB's C71 comes fully assembled.
  • High Volume Computerized Balancer for cars and light trucks
  • C71 balances steel & light alloy wheels of cars, light trucks, motorcycles & scooters (with optional adaptors)
  • Self-Diagnosis and Self-Calibrating
  • Menus for quick selection of the following:
    • ounces to grams
    • inches to millimeters
    • unbalanced thresholds 0.1 or 0.25 ounces (1 or5g)
  • Almost twice as fast as other balancers
  • Optimization program for compensation of rim and tire unbalance
  • “Static” Program--plus 4 ALU programs for PAX, light alloy or special shaped rims
  • Standard Quick Nut Mounting
  • One Button Split & Hidden Weight Program
  • Automatic Distance and Diameter Entry
  • Direct Weight Location Program (no repositioning of stick-on weights)
  • Foot Brake for easy weight placement
  • Standard Splash Guard









C71











  Quick Nut Mounting


Stick On Weight Location Program









  Technical Specifications


  • Power Supply 110 VAC/12DC
  • Max. Power absorbed 0.03 Kw
  • Shaft Size 40mm
  • Balancing Speed < 100 rpm
  • Balancing Accuracy < 1g
  • Rim Diameter 10" - 30"
  • Rim Width 1.5" - 20"
  • Maximum Wheel Weight 165 lbs or (75kg)
  • Operating Temperature °F 32-113 (°C 0-45)
  • Average Cycle Time 6-8 seconds
  • Packing Dimensions L58" x W43" x H59"
  • Gross Shipping Weight 345 lbs

Manufacturer reserves the right to make any and all alterations
it may consider suitable without notice.






  Split Hidden Weight Program
  Download PDF

  Standard Accessories

  Standard adapter set with three cones, quick lock ring with hand wheel for wheels with a center hole from Ø from 1.6" to 4.33" (43-110mm).





  Rim width gauge for wheel width measurement.





  Wheel Weight Hammer






    Splash Guard








    Optional Accessories

    2 piece truck cone kit fits holes from 3.82" (97mm) to 7.09" (180mm)





    3 Piece Truck Cone Kit (same as above, but includes, G.G. spacer ring to fit: (Ford F-350, 450, 550)





    8.5 Super Cone (for G.M.C.-6500 series & International using 19.5 rims) Note: must be used w/3 piece cone kit





    RL cup (8.11” or 206 mm) for alloy rims (includes no-mar ring)





    SR-USA adaptor (for lug centric wheels)






    Universal bolt pattern adaptor (for wheels with 3-4-5 holes or without center hole)







    Motorcycle adaptor






    J Cone high Precision cone for 4-wheel drive vehicles






    Mt Cone high precision stepped cone for Porsche – Audi - Volkswagen – Opel – BMW







    Pneumatic Wheel Lift
