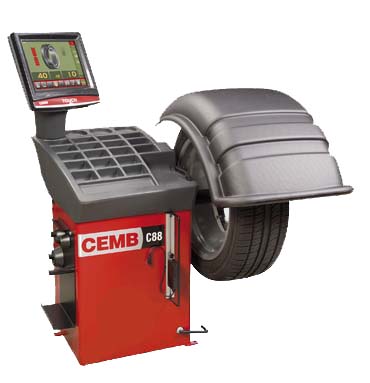

Cemb C88 Video Wheel Balancer





Premium Video Wheel Balancers
Pneumatic Locking (CEMB Patent)








CEMB wheel balancer for large automotive or specialty wheel tire shops and car dealerships. This machine will handle all your tire balancing needs. CEMB's C88 comes fully assembled.

  • High Volume Video Balancer for cars and light trucks
  • C88se balances steel & light alloy wheels of cars, light trucks, motorcycles & scooters (with optional adaptors)
  • HD High Definition Flat Screen Video Monitor with Touch Screen
  • “Intelligent” averaging system for residual static in-balance
  • Self-Diagnosis and Self-Calibrating
  • Menus for quick selection of the following:
    • ounces to grams
    • inches to millimeters
    • unbalanced thresholds 0.1 or 0.035 ounces (1-5g)
  • Optimization Program for compensation of rim and tire unbalance
  • “Static” program--plus 4 ALU programs for PAX, light alloy or special shaped rims
  • Four Operator Function
  • Pneumatic Locking Shaft
  • One Button Split & Hidden Weight program
  • Automatic Distance and Diameter Entry
  • Automatic Width Sonar
  • Radial Run-Out (EMS Sonar) and Lateral Run-Out
  • Direct Weight Location Program no repositioning of stick-on weights)
  • Electronic Brake for easy weight placement
  • Printer Standard (prints and records best wheel location and weights used)












C88













Pneumatic Locking













  Technical Specifications Stick On Weight Location Program


  • Power Supply 110V
  • Max. Power absorbed 0.03 Kw
  • Shaft Size 40mm
  • Balancing Speed < 100 rpm
  • Balancing Accuracy < 1g
  • Rim Diameter 10" - 30"
  • Rim Width 1.5" - 20"
  • Maximum Tire Diameter 42"
  • Maximum Wheel Weight 165 lbs or (75kg)
  • Operating Temperature °F 32-113 (°C 0-45)
  • Average Cycle Time 6 - 8 seconds
  • Packing Dimensions L58" x W43" x H85"
  • Gross Shipping Weight 445 lbs

Manufacturer reserves the right to make any and all alterations
it may consider suitable without notice.












  Split Hidden Weight Program

  Download PDF

  Standard Accessories

  Standard adapter set with three cones, quick lock ring with hand wheel for wheels with a center hole from Ø from 1.6" to 4.33" (43-110mm).





  Rim width gauge for wheel width measurement.





  Wheel Weight Hammer






    Space Saving Wheel Guard











    Printer








    EMS sonar (radial run-out)







    Width Sonar







    Optional Accessories

    2 piece truck cone kit fits holes from 3.82" (97mm) to 7.09" (180mm)





    3 Piece Truck Cone Kit (same as above, but includes, G.G. spacer ring to fit:
(Ford F-350, 450, 550)





    8.5 Super Cone (for G.M.C.-6500 series & International using 19.5 rims) Note: must be used w/3 piece cone kit





    RL cup (8.11” or 206 mm) for alloy rims (includes no-mar ring





    SR-USA adaptor (for lug centric wheels)






    Universal bolt pattern adaptor (for wheels with 3-4-5 holes or without center hole)







    Motorcycle adaptor






    J Cone high Precision cone for 4-wheel drive vehicles






    Mt Cone high precision stepped cone for Porsche – Audi - Volkswagen – Opel – BMW







    Pneumatic Wheel Lift
