Air consists of 78% nitrogen, 21% oxygen, and
small amount of other gases. Due to the pressure differential inside
the tire and the outside atmosphere, oxygen inside the tire migrates
through the tire rubber walls to the atmosphere, resulting in

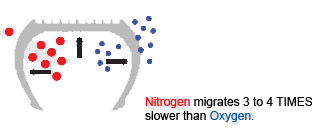

under-inflation. Nitrogen, being a larger module than oxygen,
diffuses through a tire wall 3 to 4 times slower than oxygen.
Therefore, nitrogen can better retent tire pressure.
· Efficiency
Twin-tower design
BlueGas system utilizes the twin-tower design with a simultaneous
absorption/ separation & release cycle. During the absorption/
separation cycle, one tower will draw in the air and trap oxygen
molecules in our proprietary carbon molecular sieve (CMS). At the
same time, the other tower filled with separated gases will vent the
trapped oxygen and all other gas molecules out to the atmosphere and
release the remaining nitrogen to the storage tank (release cycle).
These two processes are simultaneous and interchangeable between the
towers and thus allow continuous supply of pure nitrogen. Therefore,
you can inflate your 4 tires as fast as 40 seconds

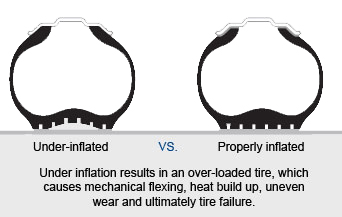

Better Fuel Economy Tires
filled with air tend to deflate over time and increase rolling
resistance. As a result, it adds additional fuel consumption.
Nitrogen inflated tires, on the other hand, can maintain proper
pressure and reduce rolling resistance. This translates into
less gas mileage and less tire wear.
Automatic shut-off
BlueGas system is equipped with automatic shut-off function once
nitrogen pressure in storage tank reaches certain level. As a
result, it keeps your compressor from working continuously and thus
consumes less power.
Purity
BlueGas system can supply you consistent
nitrogen with purity ranging from 95% to 99%.
· User friendly Design
blueGas design is extremely simple with only up
to 3-button control, 3 gauges and a LCD to display the current
nitrogen purity. Since there is no moving part, it offers reliable
operation with low maintenance.
· Enhanced safety and reliability
Under-inflated tires are the major reasons for the blowouts
and highway fatalities. Tires inflated with nitrogen can better
maintain the proper tire pressure and reduce the chances of
blowouts. This means less down-time and fewer service calls. More
importantly, it saves life.
· Reduced corrosion
Oxygen reacts chemically with inner liner, belt packages and
metal rim at high temperature and pressure, forming oxides and rust.
This chemical oxidation will cause the tire materials to lose its
strength and physical properties which results in premature failure.
Nitrogen, on the other hand, is a completely dry and inert gas which
eliminates the oxidation of the tire' s rubber components and
consequently extends the tire' s life.
Improve Retreadability
With the elimination of oxidation, there is
more flexibility in the tire casings. The casings which use nitrogen
allow more of retreadable casings and extend retread life.
Right model for your shop
Depending on the nature of your business, we
offer 3 different models – NG12, NG16 and NG58 to satisfy your
need. For example, NG-12 is suitable for a motorcycle and bike
shops while NG-18 will be a good fit for general car repair
facility. For truck and bus repair shops, NG58 meets its demands
by offering up to 5.9 cfm flow rate.
Return-On-Investment (ROI)
Example
Yours
Cost
of the system
$3,500.00
Nitrogen inflation service charge
$15.00
No. of
service per day
3
Daily
Gross profit
$45.00
Profit
per month (23-working days)
$1,035.00
Time
to breakeven
3.4
months
First-year gross profit
$8,920.00
2nd
year gross profit
$12,420.00
· Consumer
Awareness
BlueGas will help you build
awareness and drive sales with consumer printed brochure. We can
even supply banner to your shop.
· Support
Contact us at 770-320-7276 during normal business hours
Dealer service
On-site after-sale service is available through our authorized
dealers nationwide
Warranty
1-year limited manufacturer warranty with optional extended
warranty available
Due to Diagtronics' s
continuous product development program, specifications and materials
are subject to change without notice or obligation.

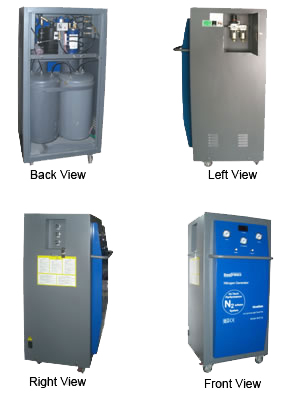

Main
unit - Air hoses (3X)
Pressure Gauge - Automatic Tire Inflation System (optional)
