Flow Dynamics

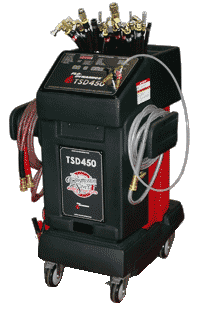

  TSD450LCD








Unique Combo Unit
connects to cooler lines or through dipstick tube...







• Fully automatic operation allows easy revenue and profit without additional time investment

• New 2.5 gallon per minute pump ensures rapid exchanges

• Superior filtration for longer machine life and less downtime

• Portable, fully interactive. Works with vehicle's 12-volt battery for easy fluid exchanges

• Advanced features mean faster fluid exchanges, for greater productivity

• Full exchange or fast dipstick process (your choice).















    FEATURES
    Beakers2   •Roto-cast polyethylene body and tanks
   •Fully interactive control panel
   •Ergonomically correct working height
   •5-inch locking caster wheels
   •Clear service hoses
   •Adapter hoses for easy hookup
   •Easy-access service panel





    SPECIFICATIONS:

      • Dimensions:  39"H x 24 3/4"W x 25"D
• Shipping Weight:  95 lbs.
• Fluid Tanks:  24qt. New & Waste
• Power:  12V DC from vehicle's battery



    STATE-OF-THE-ART DESIGN


  • Accurate sensor technology allows optimum fluid level to be maintained in vehicle’s transmission.
  • Two in-line 10-micron absolute fluid filters capture microscopic particles and contaminants.
  • Easy to use adapters allow quick hookup to virtually any automobile make and model, saving time and money.
  • Clear service hoses give visual confirmation of new and used fluid movements.
  • Ergonomically correct working height means greater productivity, less stress and strain.
  • Durable roto-cast polyethylene body and tanks prevent vehicle damage. The unit is also lightweight and durable, for easier handling and longer life.
  • Large 5-inch locking caster wheels make machine easy to maneuver.









    PERFORMANCE-DRIVEN BENEFITS


  • Fully automatic. Performs an entire exchange with the push of a button.
  • Requires no pit, lift, ramp or auxiliary power supply, and utilizes vehicle’s 12-volt battery, so it can be used anywhere.
  • 2.5 gallon per minute pump ensures rapid exchanges.





    AUTOMATIC TRANSMISSION FLUID EXCHANGE BENEFITS


  • Completes fluid exchange in minutes.
  • Remove fluid feature allows easier & cleaner removal of pan for filter change when necessary.
  • Waste fluid is drained at the touch of a button. So there’s no need to turn the machine upside down. Less effort and downtime mean greater efficiency.
  • Four capacity selections (4, 12, 16 and 20 qt.) allow for specified amounts of automatic transmission fluid to be pumped through the transmission, for more cost-effective servicing.
  • Dual Process: Full service exchange or optional dipstick mode with no cooler line connections required.

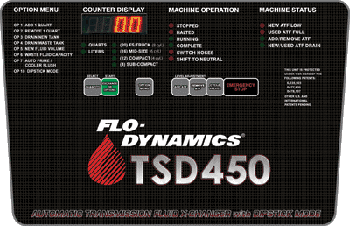

    Fully interactive control panel provides easier operation with
closer monitoring for greater efficiency, control and cost savings.
