Heavy Duty Shop Equipment Jacks

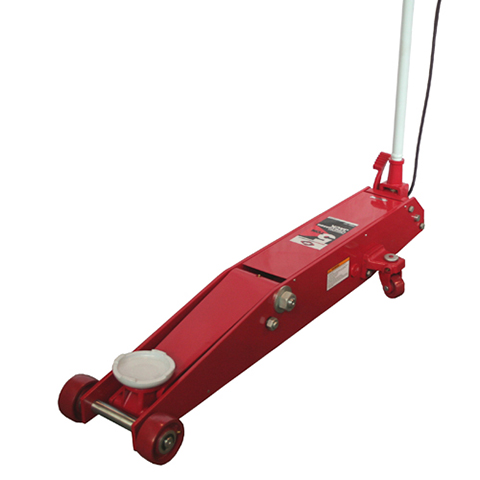

Designed for heavy-duty lifting applications (such as bus and truck fleets, agricultural, industrial and heavy construction equipment) requiring access to very low hard-to-reach areas.

·         Operates at 115-200 PSI, 7.8 cubic feet per minute

·         Long 56" body

·         Foot-operated pump for quick lifting efficiency

·         Automatic overload safety valves

·         Large, rugged 4-1/2" front wheels and 2-3/4" rear casters

·         A handle-mounted control lever to lock handle in 1 of 3 positions

·         Can be operated manually when shop air is not available

Designed for heavy-duty lifting applications (such as bus and truck fleets, agricultural, industrial and heavy construction equipment) requiring access to very low hard-to-reach areas.

·                  Long 61" body for easier lifting of vehicle with long overhangs

·                  Foot-operated pump for quick lifting efficiency

·                  Automatic overload safety valves

·                  Swivel casters for ease of maneuverability in tight shop situations

·                  A handle-mounted control lever to lock handle in 1 of 3 positions

·                  Extra-wide stance for additional stability

Designed for heavy-duty lifting applications (such as bus and truck fleets, agricultural, industrial and heavy construction equipment) requiring access to very low hard-to-reach areas.

·         Operates at 115-200 PSI, 7.8 cubic feet per minute

·         Long 61" body with 8-1/4" frame height for easier lifting of vehicles with long overhangs

·         Foot-operated pump for quick lifting efficiency

·         Automatic overload safety valves

·         Large, rugged 4-1/2" front wheels and 2-3/4" rear casters

·         A handle-mounted control lever to lock handle in 1 of 3 positions

·         Can be operated manually when shop air is not available

Designed for heavy-duty lifting applications (such as bus and truck fleets, agricultural, industrial and heavy construction equipment) requiring access to very low hard-to-reach areas.

·               Long 67" body for easier lifting of vehicles with long overhangs

·               Dual steel front wheels for added security & durability

·               Automatic overload safety valves

·               A handle-mounted control lever to lock handle in 1 of 3 positions

Transmission Jack

Two-stage telescopic ram, designed for heavier automotive and medium-duty truck transmissions, transfer cases or differentials in under-hoist applications.

·               Universal head provides forward, back and side tilt

·               Automatic safety valve provides critical overload protection

·               Adjustable saddle with corner brackets and safety chain

·               Use this jack to remove and install fuel tanks by ordering AFF Fuel Tank Adapter #3198 (sold separately)

·                     Designed for heavy truck service

·                     Adjustable width head plate and wedge shaped brackets allows for a wide range of mounting options and the 4 way tilting head makes for easier removal and installation of the transmission

·                     Equipped with a 360° swiveling handle for use in tight spots

·                     Head dimensions: Width - Min. 6-1/2", Max 18-1/4", Length - Min. 6-3/4", Max 18-1/2"

·                     Open leg design makes it very versatile

·                     Rugged heavy duty casters

·                     Safety chain included

AFF has the only super heavy-duty transmission jack with a 4,400 lb. capacity. Built "forge-tough" to handle removal, transport and installation of transmissions, transfer cases or differentials on heavy-duty trucks, buses, agricultural and construction equipment.

·                  Fully adjustable saddle with maximum tilt for easier alignment

·                  Adjustable corner brackets

·                  Convenient side trays for small tools and parts

·                  Safety overload bypass system to prevent hydraulic damage

·                  32" handle pivots 360° around pump

·                  Rugged industrial-grade 4" casters

The AFF 1/2 Ton capacity Air/Hydraulic Transmission Jack combines an air-operated first stage for maximum speed with a hydraulic second stage for more accurate final positioning.

• Four fast-ratcheting head brackets to easily secure to transmission pan flanges.

• Extendable height from 34" to 72-3/4"

• Large crank handles for precise head adjustments

• Strong nylon safety strap for secure load anchoring

• Solid (41" x 41") stance with heavy-duty, wide 4" swivel casters for easier, more efficient under-hoist positioning

Air Operated Jack

Designed for heavy-duty low-profile vehicles that require a longer reach in order to be securely lifted at the vehicle front axle or frame and can also be used on the bumper. The scissor action design and full shop air operation (160 PSI) provide more lift height under low profile vehicles. Using its multiple saddle sizes and adjustments along with its standard drop-axle adapter it can lift from as low as 6-1/2" to a high 53-1/2" with a long 48" forward reach.

·         Steel saddles adjust between 23" & 45" widths to accommodate a variety of vehicle applications

·         48" forward reach (distance from cylinder to saddles)

·         Two saddle sizes and drop axle adapter increase versatility

·         Three-way heavy-duty air valve for precision lifting

·         Automatic safety lock engages in five preset positions

·         Two large pneumatic wheels for easy maneuverability

The AFF Air End Lift is designed with an extra-wide stance to lift the entire front or rear of large trucks, buses, industrial, heavy-duty construction equipment, and large farm vehicles.

·      10-Ton capacity achieved at 200-PSI air supply

·      4" x 6" steel saddles adjust between 36" and 50" widths

·      Saddle arms reversible for low height loads

·      Three-way air valve for fine lifting and lowering control

·      Automatic mechanical safety lock engages at five lift heights from 17-1/2" to 50"

·      Two air control valve fittings – one for shop air supply and one for a Schrader valve

·      Front swivel caster and two pneumatic rear tires for easy maneuverability

·      13" Forward reach (distance from cylinder to saddles)

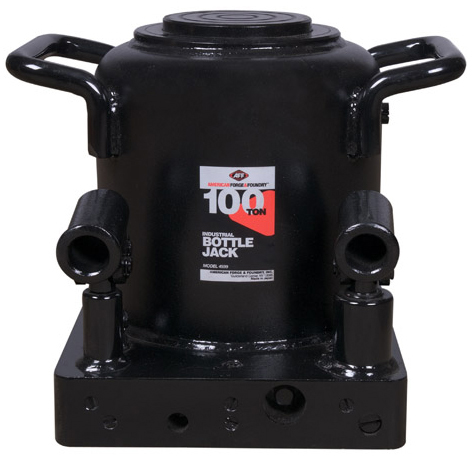

Industrial Bottle Jacks

AFF Heavy-Duty Industrial Bottle Jacks set the highest market standards with their premium grade materials and workmanship. Precision welding, CNC machined parts, as well as forged high grade steel and alloys are combined to provide years of trouble-free service in some of the most severe conditions.

·         Precision electrically welded steel uni-body

·         Can be used in upright, horizontal or angled position

·         Machine-hardened needle release valve for precise controlled ram lowering

·         Leak proof casing, cylinder, and base

·         Used for lifting, pushing, spreading, bending, pressing or straightening applications

·         Withstands temperature extremes

·         Grooved saddles help prevent load slippage

·         Chrome plated piston rods for added corrosion resistance

·      Capacity: 100 Tons

·      Low Ht: 12"

·      High Ht: 17-1/4"

·      Lift: 5-1/4"

·      Screw Ext: --

·      Base: 15-1/2"x 12-1/2"

·      Qty per Case: 1

·      Case Wt: 207 lbs.
