Miscellaneous Shop Equipment |
|
| |
Spray Wash Cabinet |
|
|
| |
 |
Model Number: SWC |
|
|
| |
|
|
|
| |
- 14 gauge steel construction
- Large octagonal door for maximum turntable access
- 18 Multi-directional spray jets
- Easily removable parts tree and hanging small parts basket
- Tank drain for sludge removal
- Jam free turntable
- Filter basket with removable screen
- Timer and safety door switch
- Oil skimmer w/15min timer
- 2.5" Casters for mobility
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Documents: |
|
|
|
| |
|
| Specifications |
| Model Number |
SWC |
| Interior height |
43" |
| Interior width |
32" |
| Turntable diameter |
30" |
| Overall height |
66" |
| Floor space required |
44"x43" |
| Load capacity |
500lbs |
| Cycle time |
60min |
| Motor |
1hp |
| Pump output |
50gpm |
| Heater |
4.5Kw |
| Solution capacity |
50gal |
| Filter area (screen) |
170sq.in. |
| Electrical requirements |
208-240/60/1 |
| Shipping weight |
500lbs |
|
|
| |
Literature |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
Spray Wash Cabinet, Truck |
|
|
| |
|
|
|
|
| |
 |
Model Number: SWC-TR |
|
|
| |
|
|
|
| |
- 14 gauge steel construction
- Large octagonal door for maximum turntable access
- 22 Multi-directional spray jets
- Easily removable parts tree and hanging small parts basket
- Tank drain for sludge removal
- Jam free turntable
- Filter basket with removable screen
- Timer and safety door switch
- Oil skimmer w/15min timer
- 2.5" Casters for mobility
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| |
|
Documents: |
Specifications |
Model Number |
SWC-TR |
Interior height |
54" |
Interior width |
32" |
Turntable diameter |
30" |
Overall height |
78" |
Floor space required |
44"x43" |
Load capacity |
750lbs |
Cycle time |
60min |
Motor |
2hp |
Pump output |
92gpm |
Heater |
4.5Kw |
Solution capacity |
50gal |
Filter area (screen) |
170sq.in. |
Electrical requirements |
208-240/60/1 |
Shipping weight |
750lbs |
|
|
| |
|
|
|
| |
|
Literature |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|

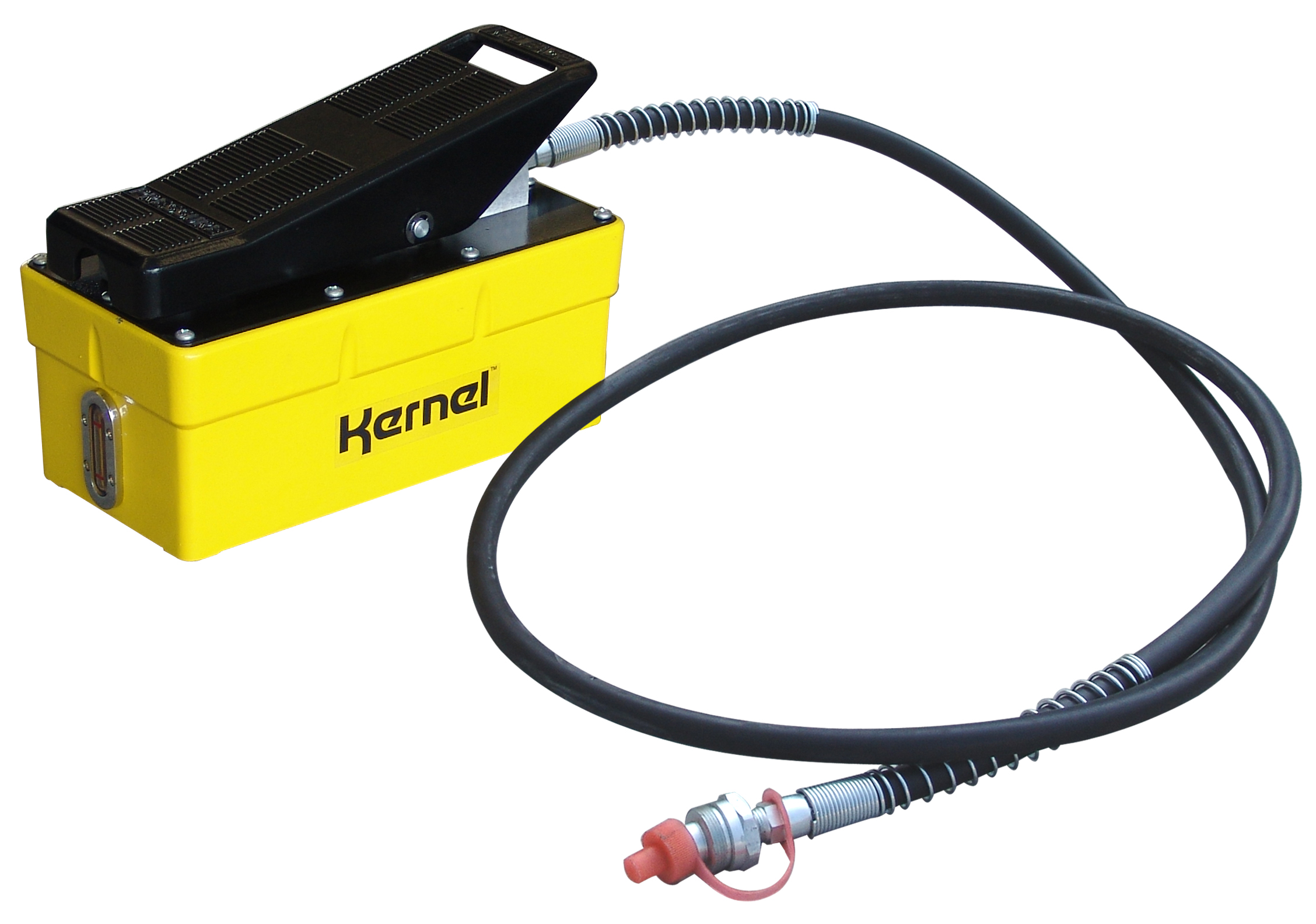

Air Powered Hydraulic Pump |
|
|
| |
|
|
|
|
|
| |
|
 |
Model Number: AP-10K |
|
|
| |
|
|
|
|
| |
|
- Heavy-duty aluminum reservoir
- All metal internal moving parts
- Pump treadle can be operated by hand or foot
- Built in safety relief valve protects hydraulics components from overloading.
- 2.5 liter oil reservoir capacity
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
Documents: |
Specifications |
Model Number |
AP-10K |
Air pressure range |
25 - 125psi |
Max. hydraulic pressure |
10Kpsi |
Oil flow at 100psi |
48 cu.in/min |
Oil flow at 10Kpsi |
7cu.in/min |
Reservoir cap. |
2.5 liters |
Hose length |
98.5 " |
|
|
| |
|
|
|
| |
|
Literature |
|
| |
|
|
|
| |
|
Manual |
|
| |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
Auto rewind Hose Reel |
|
|
| |
|
|
|
|
|
| |
|
 |
Model Number: HR-50 |
|
|
| |
|
|
|
|
| |
|
- air and water applicatiions
- Multi-position ratchet lock
- Auto-rewind and stop bumper
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
Documents: |
Specifications |
Model Number |
HD-50 |
Hose length |
15meters |
Maximim pressure |
300psi |
Connector |
1/4 npt |
|
|
| |
|
|
|
| |
|
Literature |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
Mobile Paint Panel Holder |
|
|
| |
|
|
|
|
|
| |
|
 |
Model Number: PJ-250 |
|
|
| |
|
|
|
|
| |
|
- Large wheels for easy maneuverability
- Chrome plated base unit
- Zinc plated bars and hooks
- Ideal for repair and painting of: hoods, doors, trunk lids and tailgates
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
Documents: |
Specifications |
Model Number |
PJ-250 |
Package includes: |
|
Head nut |
|
Wheel base unit |
|
Large and small bars |
|
Large and small hooks |
|
T pieces |
|
|
|
| |
|
|
|
| |
|
Literature |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
| |
|
