Worth 2 Post Lift


  Worth 2 Post lift












  With 'Extended Life' Features

  9000 - 10000 - 12000 - 15000

  Worth 2 Post Lift labeled

















  WORTH “EXTENDED LIFE” FEATURES

  ( 1 ) Structural Tube Overhead - All Worth Clear Floor models feature 4 sided structural tube overhead bars, not 3 sided sheet metal or channel.
( 2 ) Center Bands - All Worth 2 Post lifts feature center bands (reinforcement flanges) to eliminate premature wear and opening of columns.


  2 post lift worth
















  automatic arm restraints truch adapters







  Automatic Arm Restraints lock as soon as the lift begins upward to help prevent load shifting while the vehicle travels up and down. Once vehicle is completely lowered arms release automatically. Truck Adapters available in slide-over and 8” screw type. These adapters are usually required when servicing light trucks, vans, and sport-utility vehicles.









  worth 2 post lift
















  ( 3 ) Oversized Base Plates And Gussets - All Worth lifts feature over- sized base plates with oversized gussets . Base plates through the model 12000CF are based on a 24”x24”x5/8” minimum size to prevent concrete breakout and offer increased stability.
The 15000CF features an even larger base plate, which is based on a 32”x24”x1” size.



  truck adapters Truck Adapters available in slide-over and 8” screw type. These adapters are usually required when servicing light trucks, vans, and sport-utility vehicles.












  Back up safety lock 3 HP power unit







  Dual Back-Up Safety Locks
located in each post, and lock every 2 inches.
3 HP Power Unit comes standard on all two post lifts. This unit is as much as 50% stronger than our competition.





  2 Post worth lift
















  Solid steel equalizer pulleys Solid Steel Equalizer Pulleys
with pressed-in bronze bushings are built to last. Our competitors use plastic pulleys.

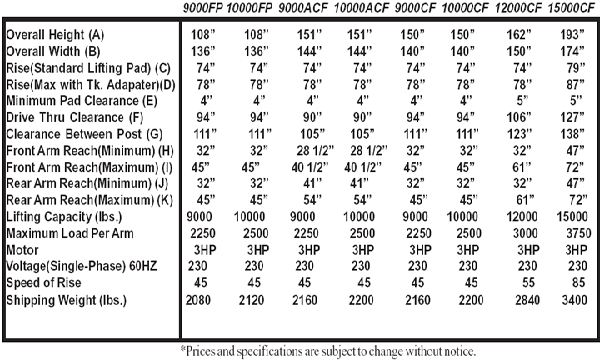

  Lift Specifications

  Specs




















  Diagram Additional 2-Post Options:

* Custom Heights
* Custom Widths
* 3-Phase Motor
* 50HZ Motor























logo

Print brochure as a PDF








  MODEL 18000CF 2-Post Lift

  1800CF “EXTENDED LIFE” FEATURES INCLUDE:

( 1 ) Structural Tube Overhead - All Worth Clear Floor models feature 4 sided structural tube overhead bars, not 3 sided sheet metal or channel.
( 2 ) Center Bands - All Worth 2 Post lifts feature center bands (reinforcement flanges) to eliminate premature wear and opening of columns.
( 3 ) Oversized Base Plates And Gussets - All Worth lifts feature oversized base plates with oversized gussets . Base plates through the model 12000CF are based on a 24”x24”x5/8” minimum size to prevent concrete breakout and offer increased stability. The 18000CF features an even larger base plate, which is based on a
32”x24”x1” size.















    Additional 2-Post Options:
* Custom Heights * Custom Widths
* 3-Phase Motor * 50HZ Motor





Specifications:

Overall Height (A) 193”
Overall Width (B) 174”
Rise (Standard Lifting Pad)  (C) 79”
Rise (Max with Tk. Adapater) (D) 87”
Minimum Pad Clearance (E) 5”
Drive Thru Clearance (F) 127”
Clearance Between Post (G) 138”
Front Arm Reach (Minimum) (H) 47”
Front Arm Reach (Maximum) (I) 72”
Rear Arm Reach (Minimum) (J) 47”
Rear Arm Reach (Maximum) (K) 72”
Lifting Capacity (lbs.) 18000
Maximum Load Per Arm 4500
Motor 3HP
Voltage( Single-Phase) 60HZ 230
Speed of Rise 85
Shipping Weight (lbs.) 3400

*Prices and specifications subject to change without notice
