Cemb ER100 Touch Video Wheel Balancer







Features and Benefits




Touch Video Wheel Balancer and Diagnostic Center

ER100 is the only machine which can measure in 6 seconds and without any intervention of the operator dimensions, unbalance, wheel and rim runout, tread depth and conicity.

  • High Volume Computerized Diagnostic Center for cars and light trucks
  • In one spin (and without any intervention of the operator) can measure dimensions, unbalance, wheel and rim runout with direct matching, tread depth and conicity
  • Total diagnosis and diagnosis of the rim alone
  • Wide space to work inside the rim
  • Touch Screen Video
  • Pneumatic Locking
  • Lasers for Automatic Dimensions Entry, Runout, Tread Depth, Conicity
  • DC motor positions and holds automatically the wheel into the correct position
  • Laser spot for weight positioning inside the rim
  • LED to light the working space inside of the rim
  • Wheel guard
  • Automatic Zeroweight lift (CEMB patent)
  • Self-Diagnosis and Self-Calibration
  • Menus for quick selection of the following:
  • inches to millimeters
  • unbalanced thresholds 0.1 or 0.25 ounces (1 or 5g)
  • Direct selection ounces/grams
  • Optimization program for compensation of rim and tire unbalance
  • "Static" program--plus 4 ALU programs for PAX, light alloy or special shaped rims
  • Format and graphics of the print can be customized
  • Personalized screensaver
  • 21-Compartment Weight Tray













  ER100


FREE SHIPPING within the USA only!!!!







  Technical Specifications

  • Technical specifications
  • Power Supply 110VAC
  • Min/Max Air Pressure 115/145psi (8/10bar)
  • Shaft Size 40mm
  • Balancing Speed < 100 rpm
  • Balancing Accuracy < 1g
  • Rim Diameter 10" - 30"
  • Rim Width 1.5" - 20"
  • Max. Wheel Weight 165 lbs (75kg)
  • Oper. Temperature °F 32-113 (°C 0-45)
  • Average Cycle Time 6-8 seconds
  • Shipping Dimen. L58" x W43" x H85"
  • Gross Ship. Weight 630 lbs














  Documents:

  User Manual

  Brochure

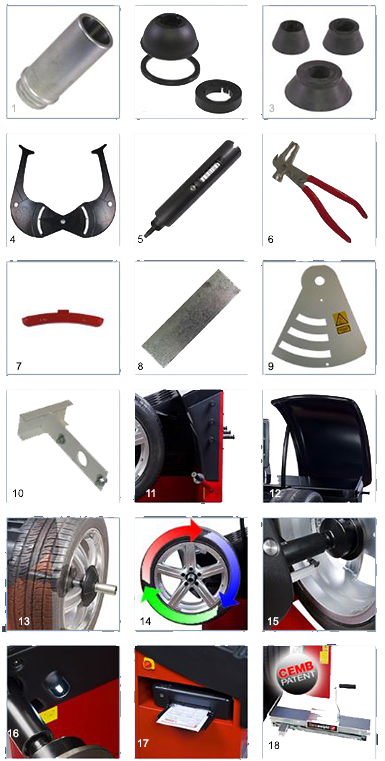

  Standard Accessories



1. PNEUMATIC SLEEVE

2. CUP + PRESS. RING
Reverse mounting cup with no mar-ring + Pressure ring

3. CONES
3 cones covering hole sizes 1.69” (43mm) to 4.33” (110mm)

4. CALIPER
Rim width gauge for measuring wheel width

5. SHAFT
40mm pneumatic shaft

6. WEIGHT PLIERS
Can be used as balanced weight hammer, cutting pliers for trimming wheel weights, and puller to remove the old wheel weights

7. TEST WEIGHT

8. SHAFT TOOL
Tool to lock/unlock the shaft

9. LASERS CAL.T.
Tool to calibrate the lasers

10. CONICITY CAL.T.
Tool to calibrate the conicity

11. STORAGE
7 pegs for adaptors storage

12. WHEEL GUARD

13. PNEUMATIC LOCK.

14. DC MOTOR
DC motor positions automatically the wheel into the correct position

15.. LASERS
Laser for automatic dimensions readings (3D), runout, conicity, weight positioning

16. LED
LED to light the working space inside of the rim

17. PRINTER

18. ZEROWEIGHT LIFT
CEMB PATENT - Automatic lift

ER100 Standard Accessories




































  Optional Accessories



1. UH20/2
CEMB PATENT - Universal bolt pattern adaptor (for wheels 3-4-5 holes or without center hole)

2. WD + DC
WD wheel support spacer for very wide wheels + DC spring pusher bush

3. RL CUP + RING
Large diameter plastic cup for alloy rims protection (8.11"/206mm for alloy rims, includes no-mar ring)

4. SR USA SE
Stud adapter for rim protection and high precision (for lug centric wheels) for pneuamtic locking

5. 2P TRUCK C.K.
2 piece truck cone kit for light truck wheels for hole from 3.82" (97mm) to 7.09" (180mm)

6. 3P TRUCK C.K.
2 piece truck cone kit + GG spacer ring to fit Ford F-350, 450 and 550

7. 8.5" SUPER CONE
Cone for GMC 6500 series & International using 19.5" rims (must be used with 3 Piece Truck Cone Kit)

ER100 Optional accessories
