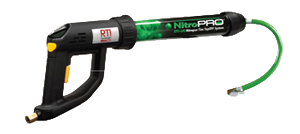

NTO-200 Handheld Nitrogen Inflation System |
||||
RTI pioneered portable nitrogen tire inflation equipment with our NitroPRO® machines, known for superior quality and performance. Now with the NTO-200, you can have the same NitroPRO® quality system for your shop’s small-scale applications. |
||||
|
Simple to use, simple to maintain! • Quick connect adaptor hooks to your shop’s existing compressed air system • This lightweight and highly portable tool will top off 4 tires in less than 10 minutes • Digital display for clear operation • Self-contained membrane cartridge is easily removed by simply unscrewing the cartridge locking ring Offer more services to your customers! • Stop turning away customers because you don’t have nitrogen capabilities • Increase revenue • Build customer loyalty |
|||
| Handheld Nitrogen Inflation System NTO-200 | ||||
The NitroPRO®NTO-200 is the perfect tool for these nitrogen inflation applications: • Individual Tire Conversions • Tire Top-Offs • Motorcycles • ATVs • Bicycles • Lawn & Garden Equipment • RVs • Sporting Goods • And So Much More! NitroPRO® Membrane Technology RTI’s NitroPRO® membrane performs consistently over a wide temperature range and will not deteriorate in garage environments. All NitroPRO® polymer membranes are fully aged and stabilized before factory shipment to maximize and maintain NitroPRO®’s high nitrogen purity and generation performance for the life of the cartridge. |
 |
|||
 |
||||
| Specifications | ||||
| Estimated Lifetime Grip* | 50,000 Tire Fills | |||
| Estimated Lifetime Cartridge* | 12,000 Tire Fills | |||
| Estimated Lifetime Cartridge* | 55,000 Tire Top-Offs @ 120 PSI | |||
| 40,000 Tire Top-Offs @ 125 PSI | ||||
| 30,000 Tire Top-Offs @ 130 PSI | ||||
| 19,000 Tire Top-Offs @ 135 PSI | ||||
| Nitrogen Capacity** | 1.8 CFM @ 68°F (Average) | |||
| (at 145 psi Inlet Pressure) | ||||
| N2 Purity at Cartridge Outlet | 95%, Average | |||
| Inlet AirQuality | ISO 8573-1: 2001 Class 3.-.3 | |||
| It is not allowed to feed liquid/aerosol condensate, water or oil into NTO-200. | ||||
| Inlet Pressure | 72-160 psi | |||
| Max Tire Pressure*** | 50% of Inlet Pressure | |||
| Temperature | -4°F to 122°F | |||
| Overall Weight | 2.6 lbs | |||
| Cartridge Weight | 1.3 lbs | |||
| Overall Dimensions | 25.2” X 9.1” X 3.5” | |||
| Cartridge Dimensions | 17.7” X 3.5” X 3.5” | |||
| Certification CE Conforming | (EMC and PED Art.3.3) | |||
| Warranty - | Grip 12 Months, Limited */** | |||
| Warranty - | Cartridge 12 Months, Limited */** | |||
| Maintenance | None | |||
| Patent | Pending Design | |||
Technical Specs based on 80 psi / 5.5 bar: *205/55R16 Tire Size **Reference condition at 14.7 PSI and 68°F ***80 psi / 5.5 bar / 0.55 MPa |
||||
