Flo Dynamics Nitrogen Generator Filling Station




  MODELS

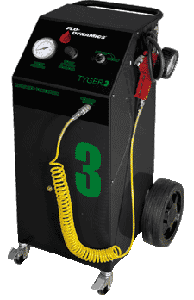

  Nitrogen Generator / Filling Station Tyger 3

  NĪT Rider Advanced Nitrogen Filling Station



  Nitrogen Generator / Filling Station Tyger 3
  tyger3 text Typer3







  BENEFITS OF NITROGEN
  • Maintains tire pressure better
  • Keeps tires 20% cooler
  • Nitrogen-filled tires use less fuel
  • Potentially reduces tire failures by
    as much as 80%
  • Improves handling and performance







MACHINE FEATURES

  • Cost-effective, turn-key, add-on service
  • Runs on shop air alone
  • Small footprint and high portability
  • Nitrogen membrane output purity > 96%
  • On-board six (6) gallon tank stores 43 gallons of Nitrogen at 115 psi
  • Complete with four deflators, service value
    calculator and green stem caps
  • Vacuums and inflates 225/70/R16 in 1 minute 45 seconds enabling service of 5-7 vehicles an hour (@34.95 per vehicle, that’s $175-$245 per hour potential revenue)
  • Automatic nitrogen tank refill when tank pressure drops below 100 psi—refills at 1.8 CFM
  • Easy change filters with sight change indicators
    Approved filling gun with large pressure gauge
tyger deflators





  includes set of tire deflators
  tyger filters




  APPLICATIONS
General Service, Quick Lubes, Non-tire Specialty Shops

  943000 - Replacement Filter Set

  Documents
  Manual

  Flyer

  Back to the Top



  New - Coming soon - NĪT Rider Advanced Nitrogen Filling Station

  nit rider advanced filling station Nit Rider NFS-500 nitrogen filling station




  New ! ! ! - ! AVAILABLE 3Q 2017!



MACHINE FEATURES

  • LCD screen displays tire pressure of all four tires at start-up—identifies potential problems before N2 filling
  • Integrated N2 Purity Tester provides live in-service N2 data
  • Unique feature allows different settings of front and rear tire pressures and automatically fills to both levels
  • Proven PSA technology assures fast and productive N2 output
  • Expandable N2 output and storage—grows with your shops needs
  • Nitrogen output of 96%+ assures valuable service
  • Can service up to 6 tires at once (Optional T-Hoses required)
  • Triple air and inline carbon bed filtration help extend the life of nitrogen producing sieves





  NIT-Rider-Screen1








SPECIFICATIONS
Electrical: 12 Volts
Air Input: >16 SCFM @ >115psi
N2 Output: 8 SCFM @ 120psi
Hoses: (4) 24 ft. service hoses

98005
N2 Storage: 20 gallon internal tank
Dimensions: 28”W x 36”D x 58”H
Shipping Weight: 371 lbs.

98006
N2 Storage: 7 gallon internal tank
Dimensions: 23”W x 36”D x 58”H
Shipping Weight: 362 lbs.

NIT-Rider-Screen2





  Documents

  Flyer
